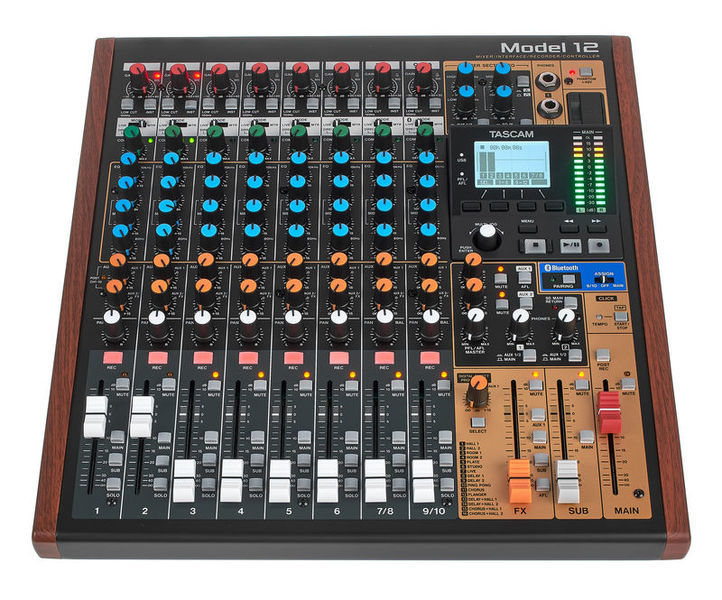

Mixer

With multi-track recorder, audio interface and DAW control functions
10-Channel mixer
12-Track recording in WAV/BWF format onto SD/SDHC/SDXC cards up to 128 GB possible
44.1 / 48 KHz
16 / 24 Bit
1-Button compressor for all input channels
Switchable low-cut
3-Band EQ with tunable mids for all mono channels
Master EQ
Overdub recording
Punch-in/out
Integrated audio interface for 12 channels (10 inputs plus stereo sum)
LCD display
12-Segment LED meter
Integrated effects processor
Switchable phantom power +48 V
Power adapter included
Dimensions: 343 x 99 x 360 mm (W x H x D)
Weight: 4.3 kg
Suitable protective cover: Article Nr. 497194 (not included)
Suitable case: Article Nr. 504823 (not included)
Connectors:
8 x Microphone/Line input combo XLR/jack 6.3 mm (channels 1-6, 7, 9 can be used as instrument inputs)
2 x Line output XLR
2 x Sub-output 6.3 mm jack
2x AUX output: 6.3 mm jack
2 x Insert 6.3 mm jack (channel 1 + 2)
Footswitch input: 6.3 mm jack
Click output 6.3 mm jack with tap tempo function
2x Stereo headphone output: 6.3 mm jack
MIDI input and output
USB
